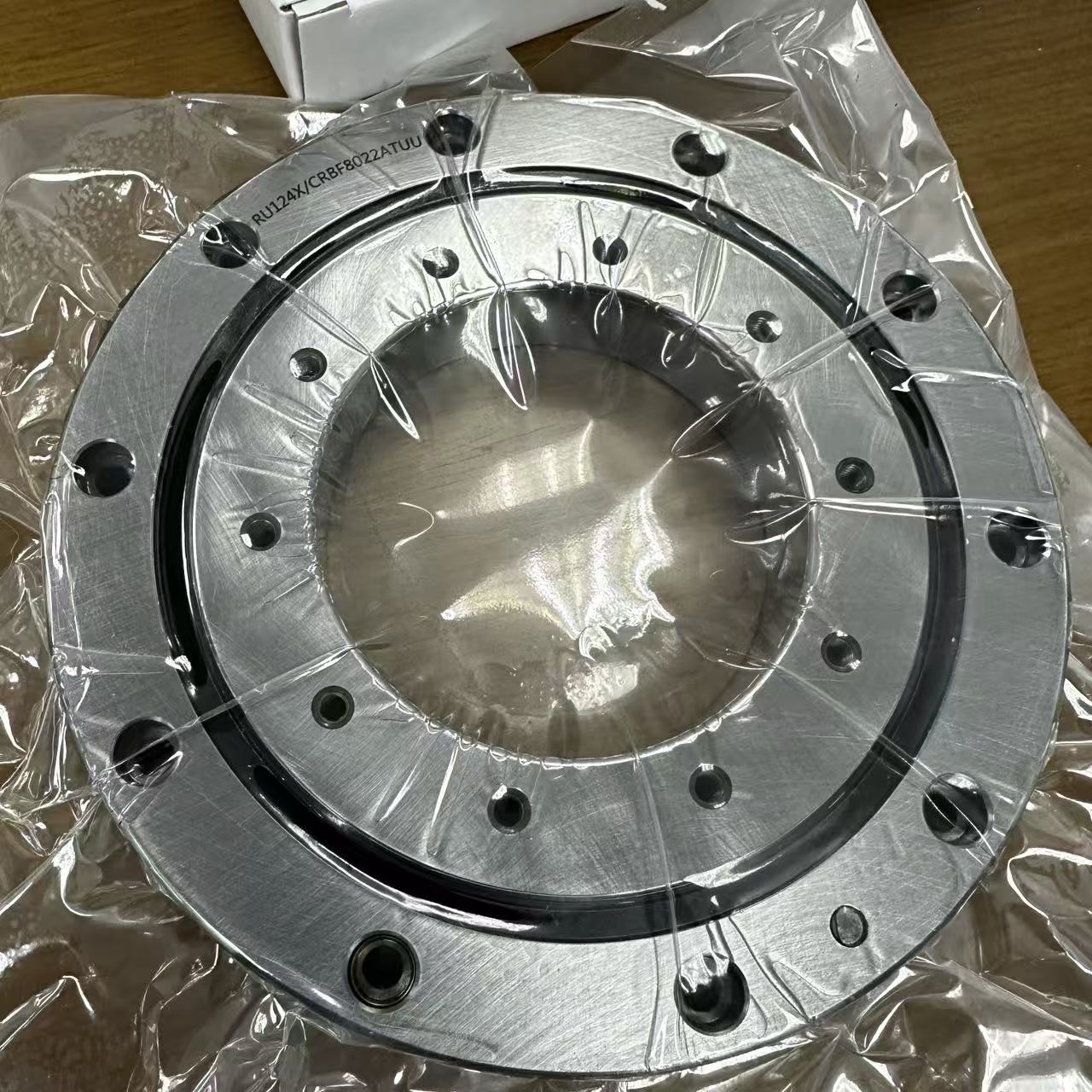

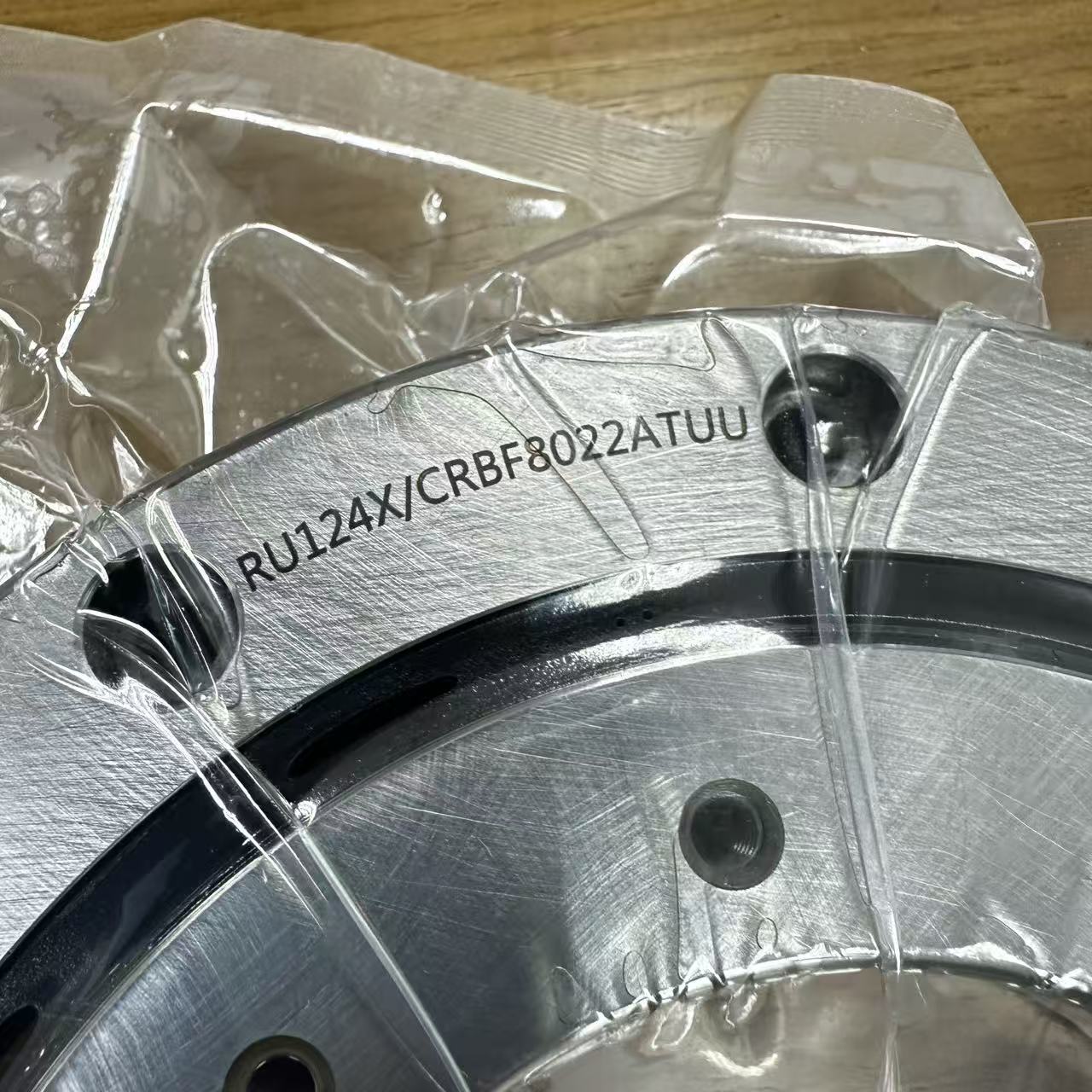

RU124X/CRBF8022ATUU

More about :RU124X

For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

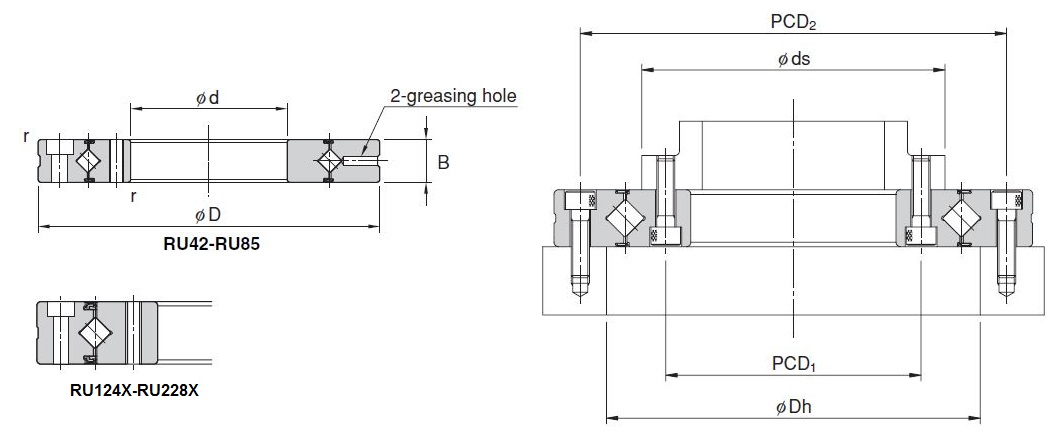

Model No.	Main dimensions						Shoulder height		Basic load rating		Mass	Mounting hole related
	Inner diameter d	Outer diameter D	Roller pitch circle diameter dp	Width B	Greasing hole d1	rmin	ds (max)	Dh (min)	Radial			Inner ring		Outer ring
									Dynamic rating C	Static rating C0		PCD1	Mounting hole	PCD2	Mounting hole
	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN	kg	mm	mm	mm	mm
RU42	20	70	41.5	12	3.1	0.6	37	47	7.35	8.35	0.29	28	6-M3 through	57	6-φ3.4 through φ6.5 counterbore depth 3.3
RU66	35	95	66	15	3.1	0.6	59	74	17.5	22.3	0.62	45	8-M4 through	83	8-φ4.5 through φ8 counterbore depth 4.4
RU85	55	120	85	15	3.1	0.6	79	93	20.3	29.5	1	65	8-M5 through	105	8-φ5.5 through φ9.5 counterbore depth 5.4
RU124X	80	165	124	22	3.1	1	114	134	33.1	50.9	2.6	97	10-M5 through	148	10-φ5.5 through φ9.5 counterbore depth 5.4
RU148X	90	210	147.5	25	3.1	1.5	133	162	49.1	76.8	4.9	112	12-M8 through	187	12-φ9 through φ14 counterbore depth 8.6
RU178X	115	240	178	28	3.1	1.5	161	195	80.3	135	6.8	139	12-M8 through	217	12-φ9 through φ14 counterbore depth 8.6
RU228X	160	295	227.5	35	6	2	208	246	104	173	11.4	184	12-M10 through	270	12-φ11 through φ17.5 counterbore depth 10.8

Application of RU124X
1. RU124X linear motion system helps to provide a guide device that enables this precision and speed to be realized.
2. RU124X In order to repeat the production of this advanced product, the guide and ball screw in the milling machine guide system which don’t waste of action
3. The guide and ball screw are indispensable for the movement of the tool section of the lathe because of its high rigidity and high precision.
4. By combining guides and ball screws with lubrication parts, we can reduce system design work and assembly steps, and extend the interval needed for maintenance.
5. Frequent earthquakes have caused great concern among residents in some regions. The vibration control system of RU124X can help solve the problem.
The system is based on the application technology of guide ball screw. It can provide protection to people's life and life in earthquake. The system can not only prevent the damage caused by the earthquake, but also reduce people's panic because of its omnipresent, reliable and durable.
