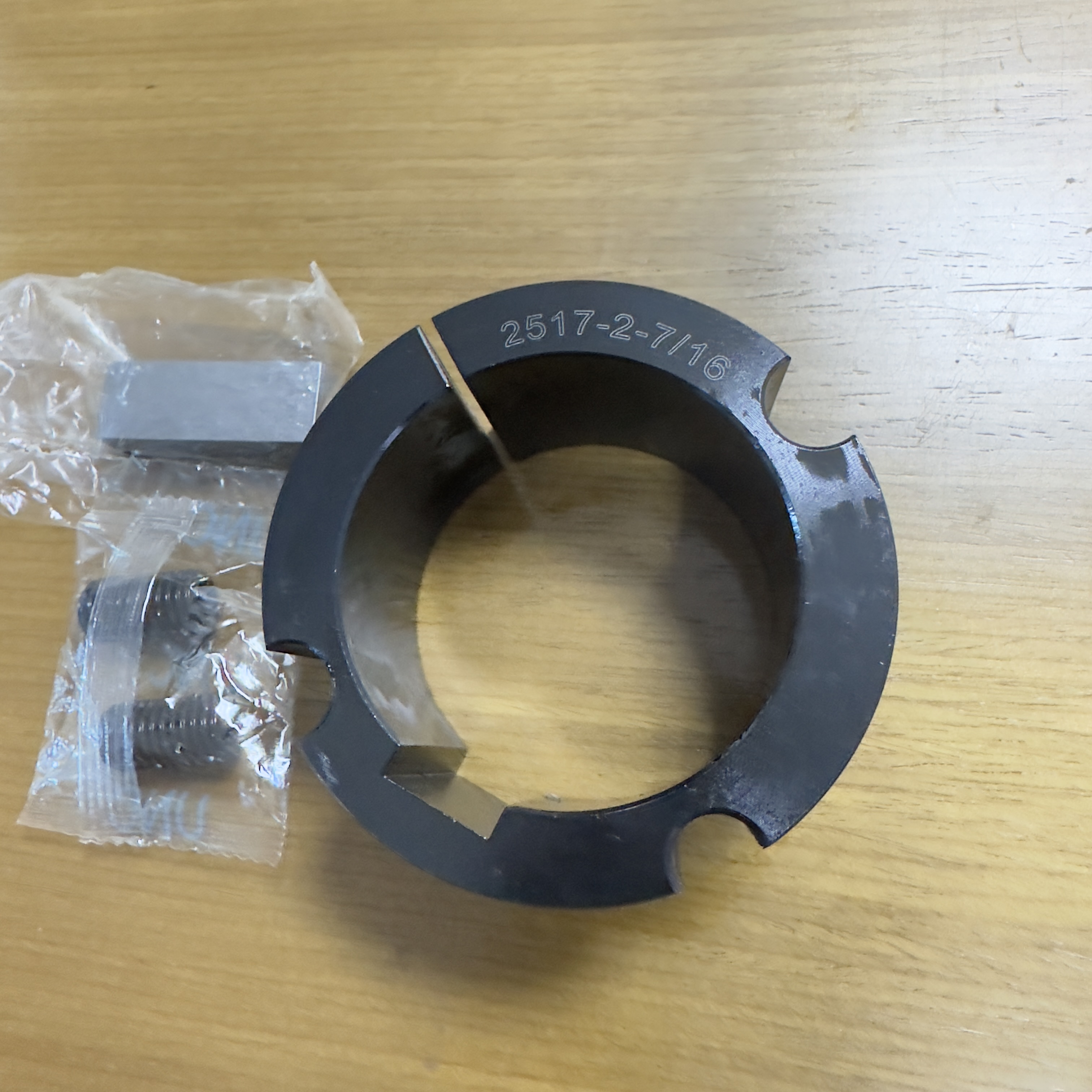

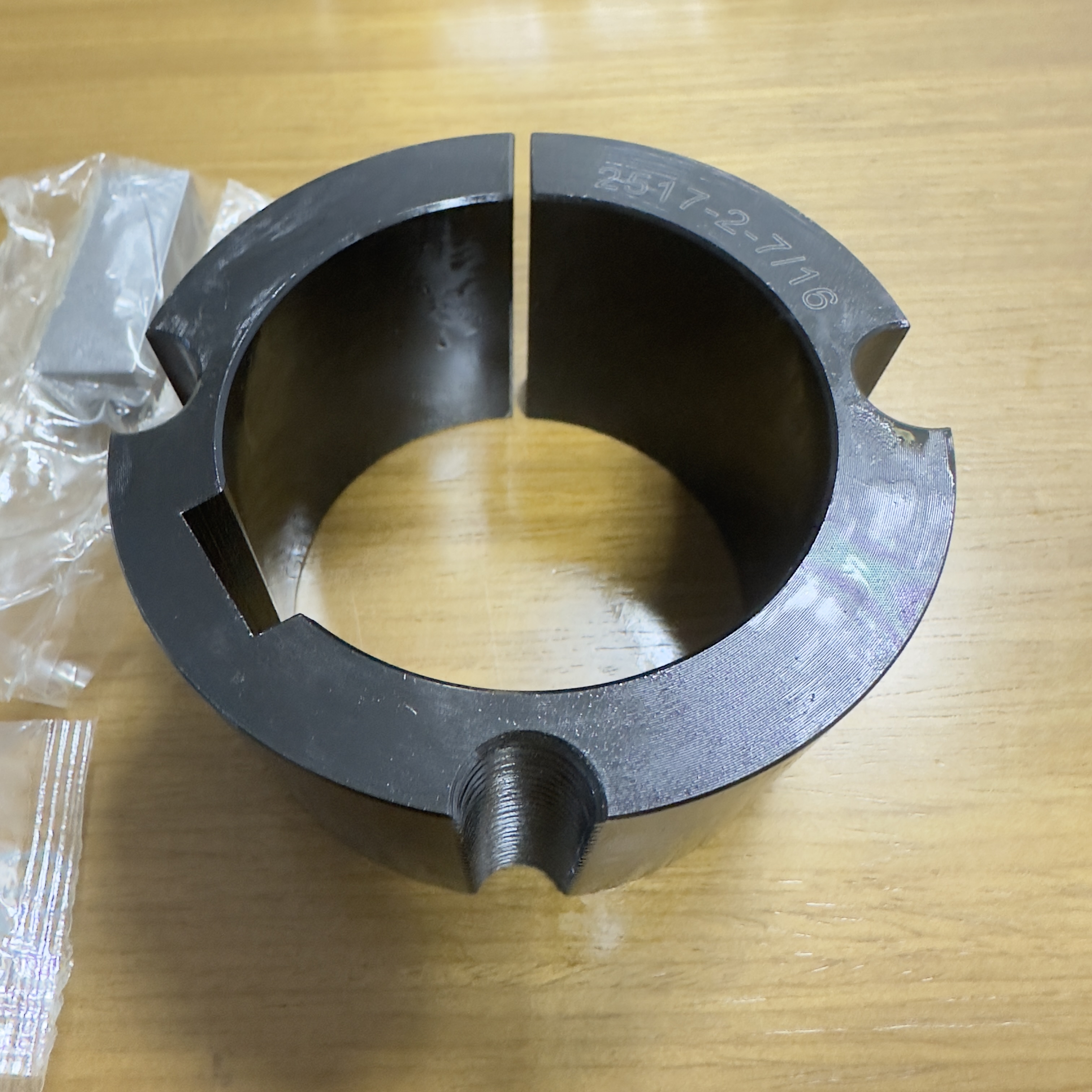

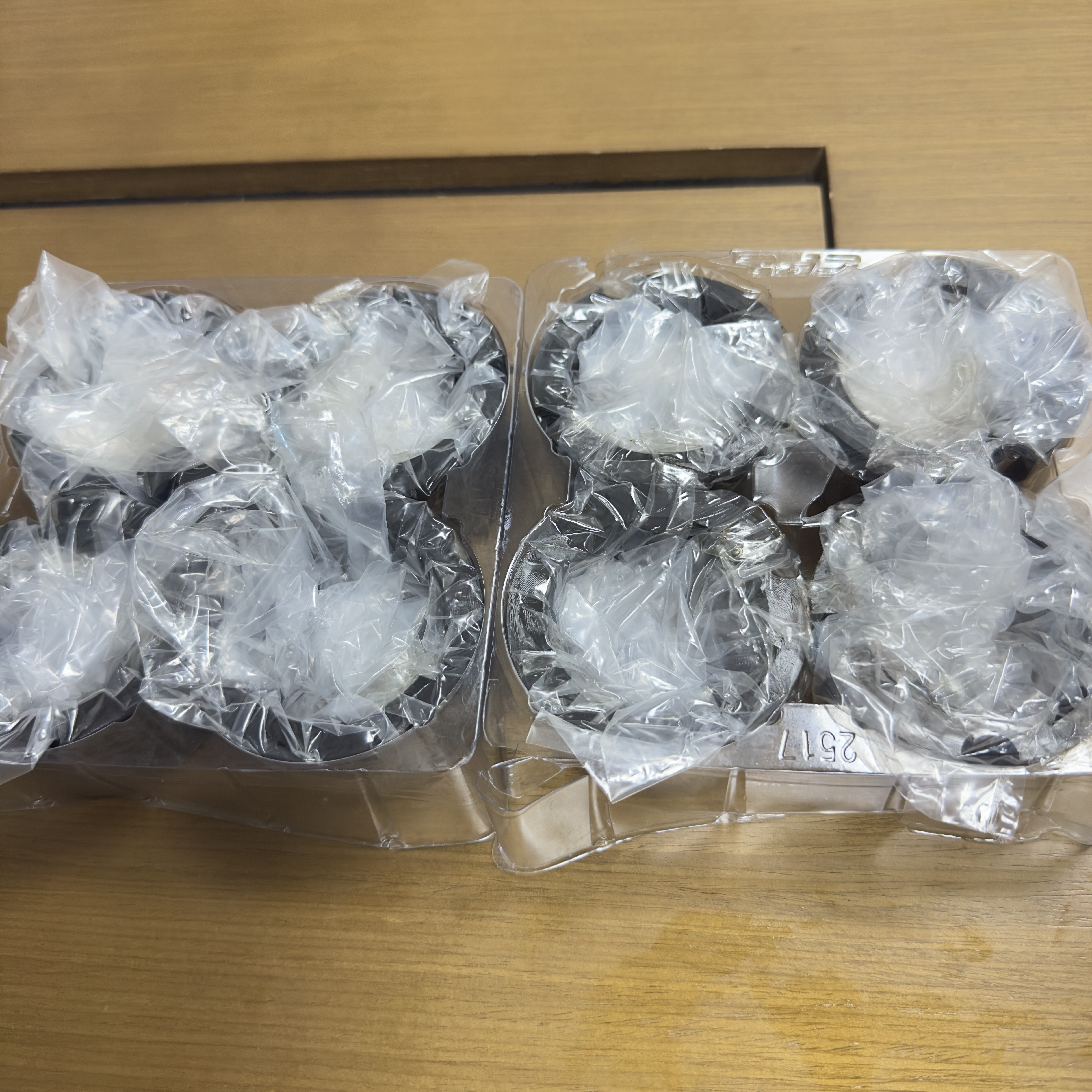

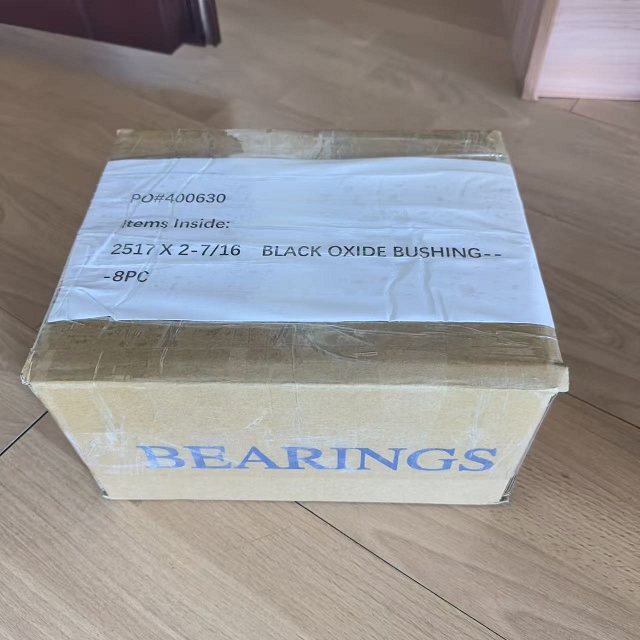

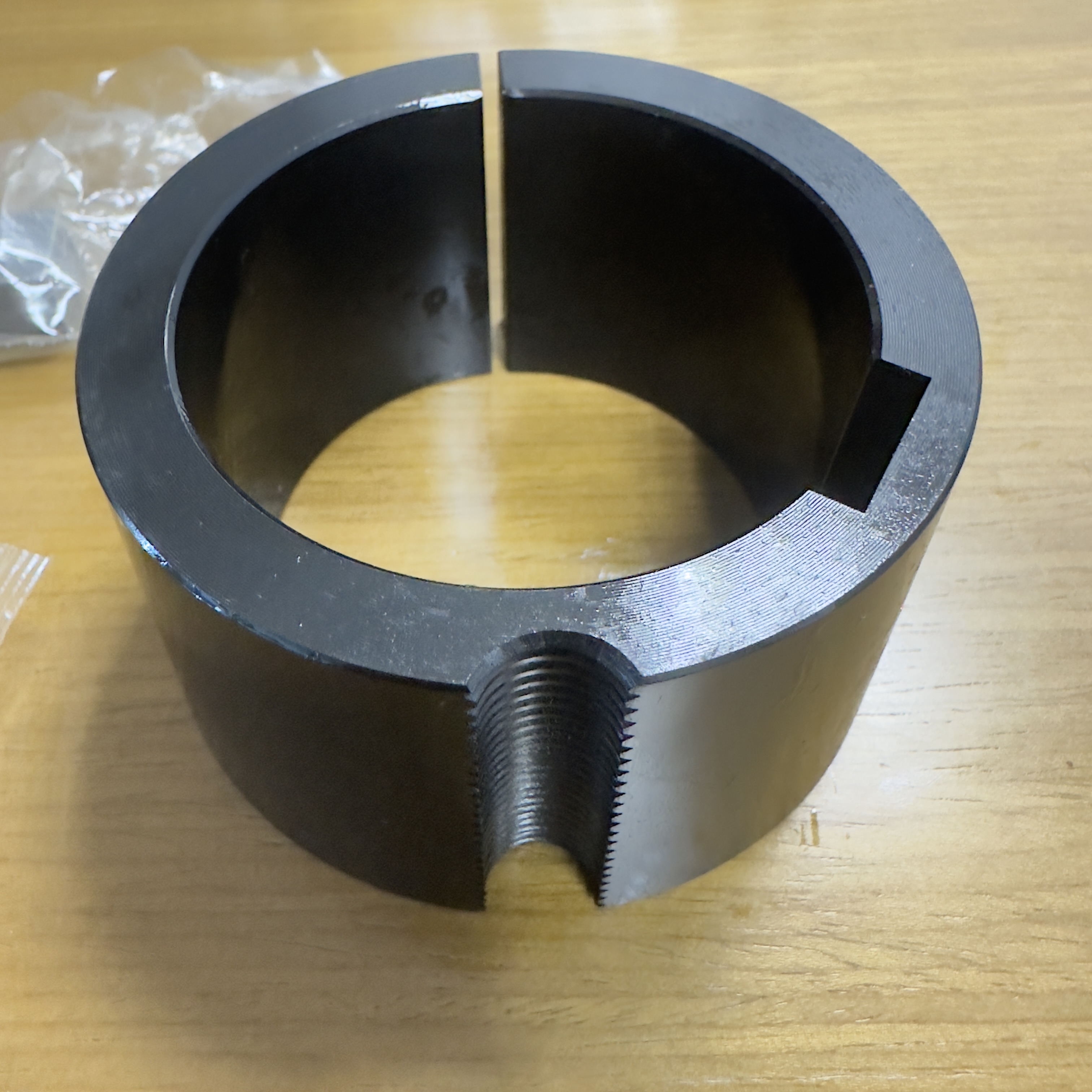

2517 X 2-7/16 Bushing,8pcs,customized Bushing,finished and ready to ship to Customer by the DHL

Specifications

• Bushing Size
  2517
• Barrel Diameter Large End
  3.375 in
• Bore Type
  Finished w/ Keyway
• Bore Diameter
  2.4375 in
• Keyway Size
  5/8 x 5/16 in
• Barrel Length
  1.75 in
• Outside Diameter
  3-3/8 in
• Length Through Bore
  1.75
• Material
  STEEL
• Stocked Finished Bore
  2.4375 in
• Screw Torque
  430 in
• Max Hub Outside Diameter
  4-3/8 in, 4-7/8 in, 5-1/2 in
• Storage Dimension Height
  1.875 in
• Bolt Circle Diameter
  3-1/4 in
• Storage Dimension Length
  3.5 in
• Number Of Bolt Holes
  2
• Screw Thread Size
  1/2-13 in
• Storage Dimension Width
  3.5
• Screw Length
  1 in
