Internal Ball SERIES

It is strictly required that there is at least one end of screw shaft with complete threads.

Also the rest area next to this complete thread must be with smaller diameter than the nominal diameter of the screw shaft.

Above are required for easy assembling the ballnut onto the screw shaft.

Previous none

Next FDIC

+86-15051683850

Product Description
Product Model

A ball screw is a mechanical linear actuator that translates rotational motion to linear motion with little friction.

A threaded shaft provides a helical raceway for ball bearings which act as a precision screw.

As well as being able to apply or withstand high thrust loads, they can do so with minimum internal friction.

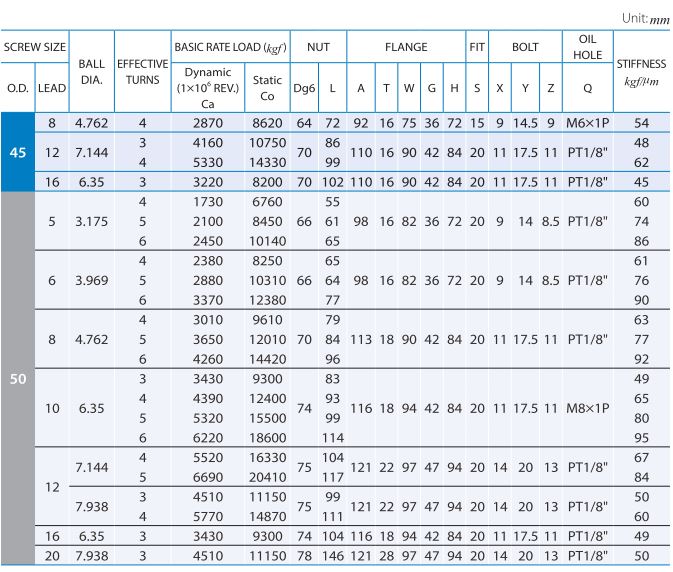

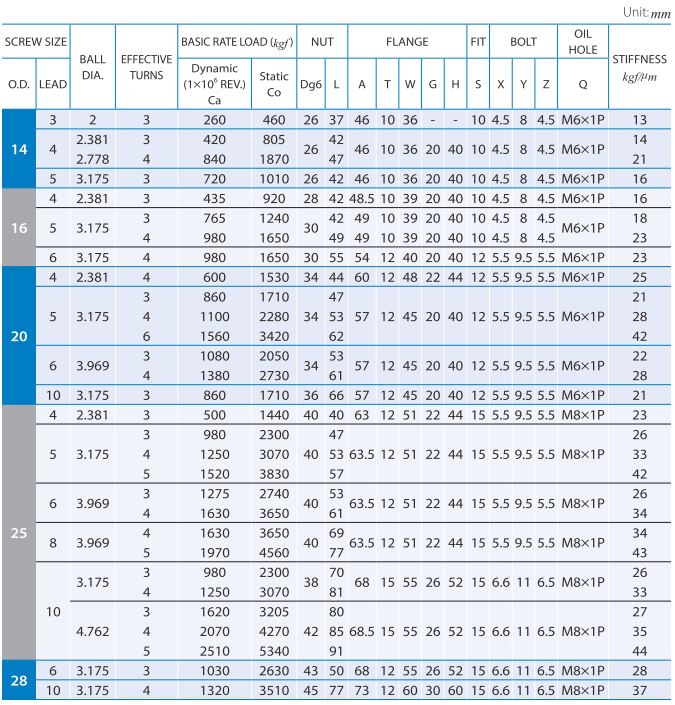

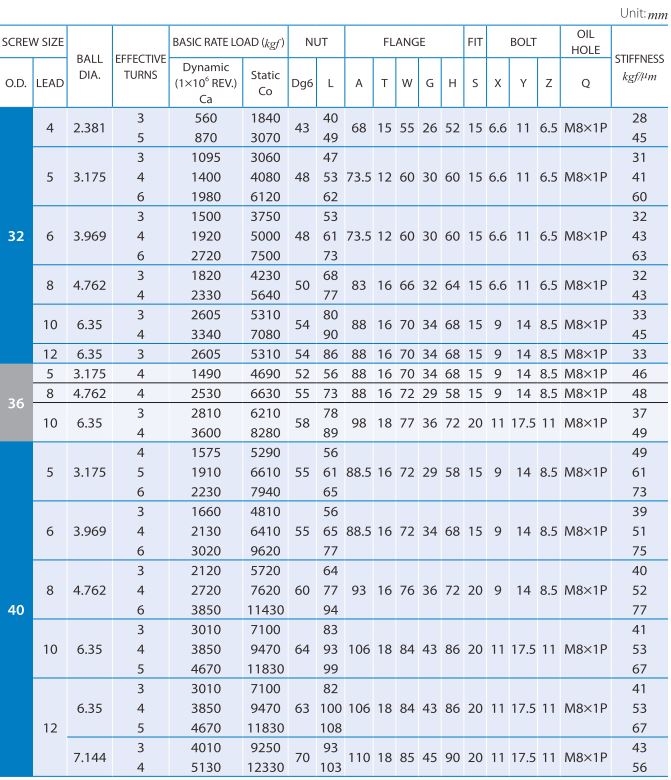

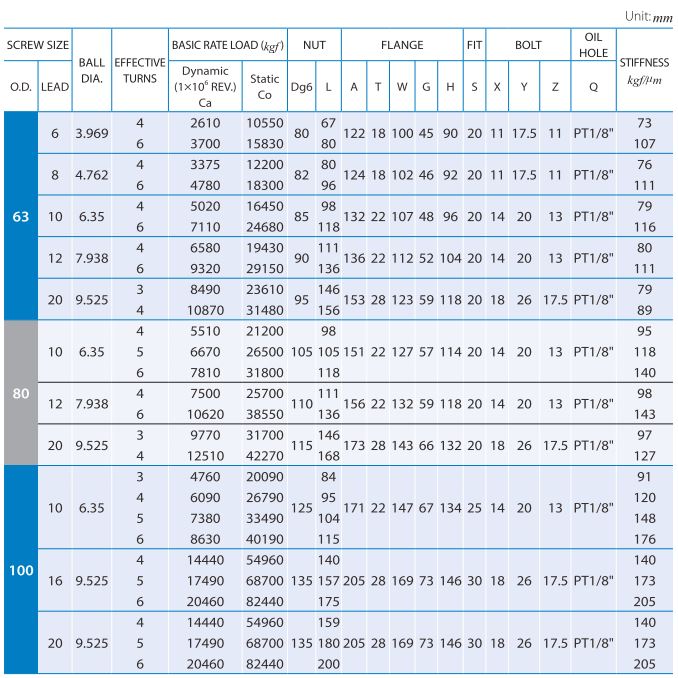

Internal Ball Series

Features

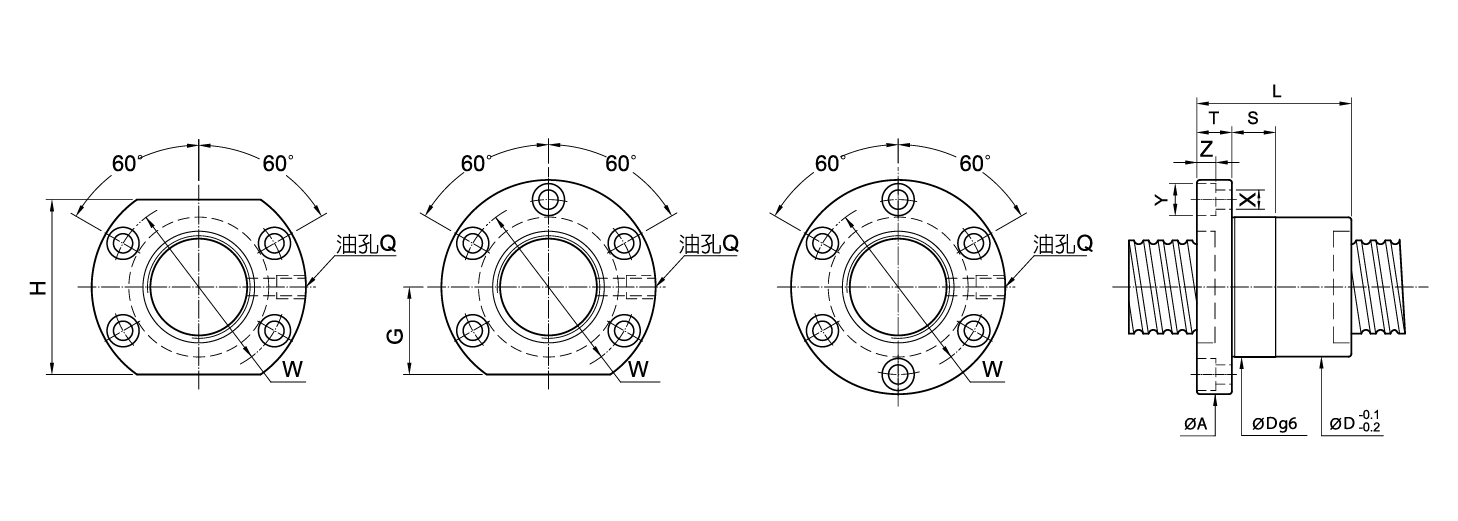

The advantage of internal ball circulation nut is that the outer diameter is smaller than that of external ball circulation nut. Hence it is suitable for the machine with limit space for Ballscrew installation.

It is strictly required that there is at least one end of screw shaft with complete threads. Also the rest area next to this complete thread must be with smaller diameter than the nominal diameter of the screw shaft.
