LME SERIES

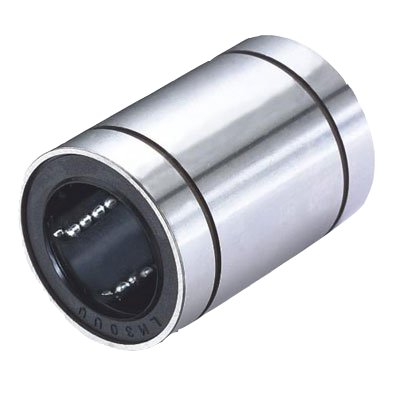

LME Series 30mm Linear Motion Ball Bearing

LME30UU For 3D Printer

(1)Linear motion bearing is a kind of low-cost metal for producing linear motion system, which is used for infinite stroke cylindrical shaft.. Because point contact ball bearing with shaft, so using the load is small.

(2) The flange linear bearing can be divided into: round flange type, method type, elliptical flange type, guided round flange, guiding method, guide the elliptical flange type, extended round flange type.

Previous LM SERIES

Next Linear Shafting,Slide Shaft

+86-15051683850

Product Description
Product Model

LME Series.pdf

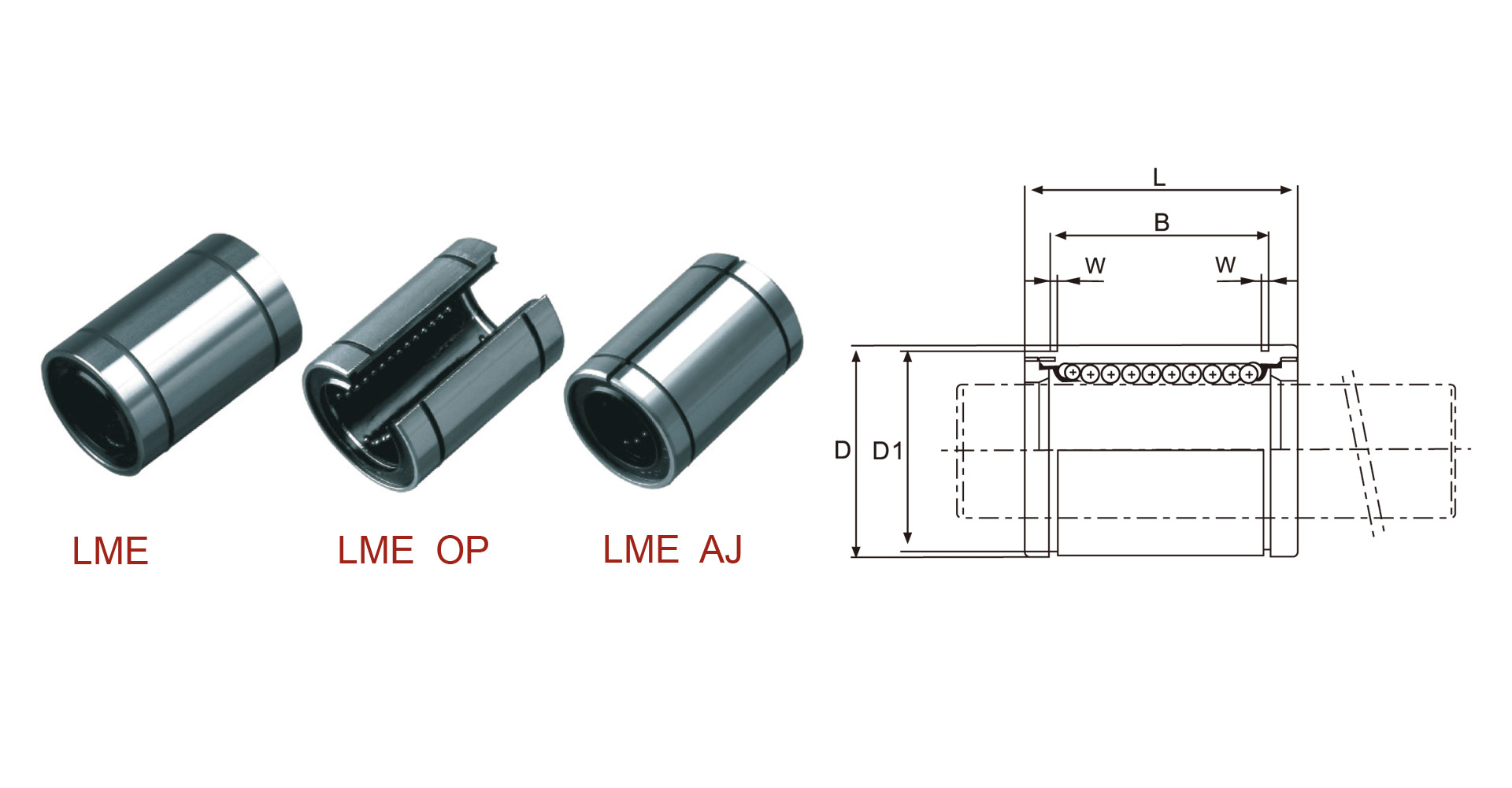

Part No.						Main Dimensions and Tolerance
	Seal Type	Ball Circuit	Open Type	Ball Circuit	Adjustable Type	Ball Circuit	dr(mm)	Tolerance (mm)	D(mm)
	LME5UU	4	-	-	LME5UUAJ	4	5	+8 0	12
	LME8UU	4	-	-	LME8UUAJ	4	8		16
☆	LME12UU	4	LME12UU-OP	3	☆LME12UUAJ	4	12		22
☆	LME16UU	5	LME16UU-OP	4	☆ LME16UUAJ	5	16	+9 -1	26
☆	LME20UU	5	LME20UU-OP	4	☆ LME20UUAJ	5	20	+9 -1	32
☆	LME25UU	6	LME25UU-OP	5	☆LME25UUAJ	6	25	+11 -1	40
☆	LME30UU	6	LME30UU-OP	5	☆ LME30UUAJ	6	30	+11 -1	47
	LME40UU	6	LME40UU-OP	5	☆LME40UUAJ	6	40	+13 -2	62
	LME50UU	6	LME50UU-OP	5	LME50UUAJ	6	50		75
	LME60UU	6	LME60UU-OP	5	LME60UUAJ	6	60		90
	Note : ☆ means steel retainer is available.
