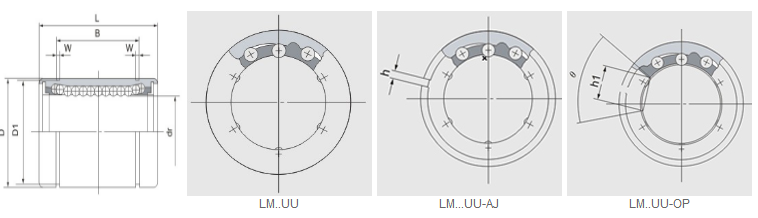

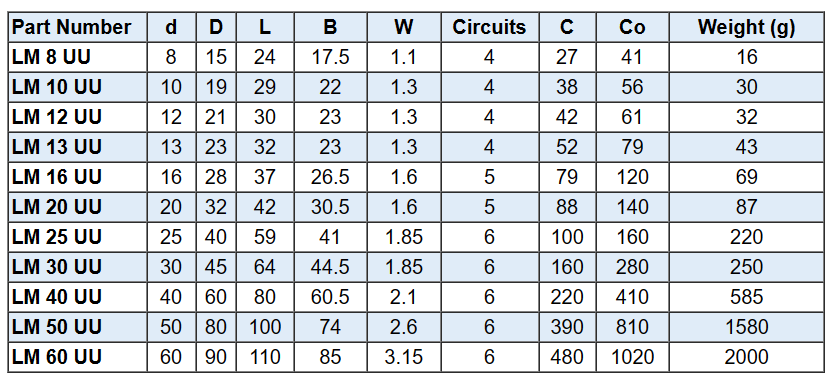

Part No. | Main Dimensions and Tolerance | |||||||||

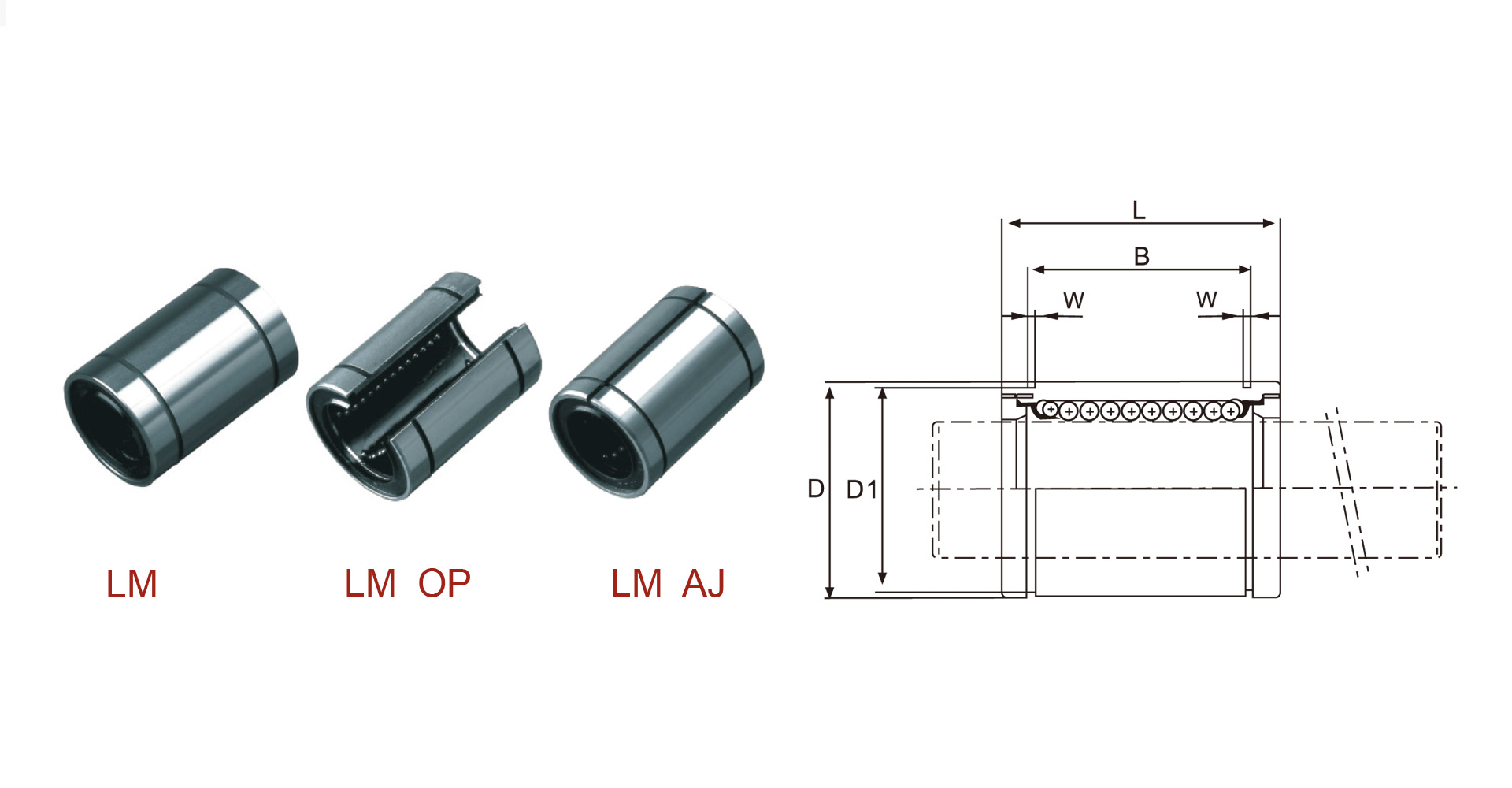

Seal Type | Ball Circuit | Open Type | Ball Circuit | Adjustable Type | Ball Circuit | dr (mm) | Tolerance (μm) | D (mm) | Tolerance (μm) | |
LM4 | 4 | - | - | - | - | 4 | 0 | 8 | 0 | |
LM5UU | 4 | - | - | - | - | 5 | 10 | |||
LM6UU | 4 | - | - | LM6UUAJ | 4 | 6 | 0 | 12 | 0 | |
LM8SUU | 4 | - | - | LM8SUUAJ | 4 | 8 | 15 | |||
LM8UU | 4 | - | - | LM8UUAJ | 4 | 8 | 15 | |||
☆ | LM10UU | 4 | - | - | ☆ LM10UUAJ | 4 | 10 | 19 | 0 | |
☆ | LM12UU | 4 | LM12UU-OP | 3 | ☆ LM12UUAJ | 4 | 12 | 21 | ||
LM13UU | 4 | LM13UU-OP | 3 | LM13UUAJ | 4 | 13 | 23 | |||
☆ | LM16UU | 5 | LM16UU-OP | 4 | ☆ LM16UUAJ | 5 | 16 | 28 | ||
☆ | LM20UU | 5 | LM20UU-OP | 4 | ☆ LM20UUAJ | 5 | 20 | 0 | 32 | |
☆ | LM25UU | 6 | LM25UU-OP | 5 | ☆ LM25UUAJ | 6 | 25 | 40 | ||
☆ | LM30UU | 6 | LM30UU-OP | 5 | ☆ LM30UUAJ | 6 | 30 | 45 | ||
LM35UU | 6 | LM35UU-OP | 5 | LM35UUAJ | 6 | 35 | 0 | 52 | 0 | |
☆ | LM40UU | 6 | LM40UU-OP | 5 | ☆ LM40UUAJ | 6 | 40 | 60 | ||
LM50UU | 6 | LM50UU-OP | 5 | LM50UUAJ | 6 | 50 | 80 | 0 | ||
